Soft Defined Radios Private IP Mesh network For Drone/ UAV / UGV / USV
1. Feature Of Soft Defined Radios Private IP Mesh Network
---- Can be rapid deployment
----- Beidou Positioning
----- No central Networking
----- Small size with light weight
---- Ready to use at start up
---- Strong Instultability
2. Description of Soft Defined Radios Private IP Mesh Network
Unmanned System Mesh Network radio,with small size, light weight, easy to install,
The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
The transmission distance can reach more than 10km in the open environment on the ground, 300-1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.
3. Specification of Soft Defined Radios Private IP Mesh Network
| System Parameter |
| Operating frequency | 1300~1500MHz |
| Bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 52Mbps@20MHz,can be choose 100Mbps |
| RF Transmitted power | 4W |
| Receive Sensitivity | -100dBm@5MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | >10 hops |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | DES/AES128 / AES256 (Optional) |
| Power supply mold | DC 20-36V supply |
| Power Consumption | ≤42W |
| Equipment interface |
| Antenna interface | N-K×2 |
| WIFI interface | SMA-K |
| Series interface | Aviation interface |
| Ethernet interface | Aviation interface |
| Power interface | Aviation interface |
| Physical indicators |
| Dimension | ≤185×135×63mm(include the interface) |
| Equipment Weight | ≤2Kg |
| Protection degree | IP65 |
| Working temperature | -40℃～+65℃ |

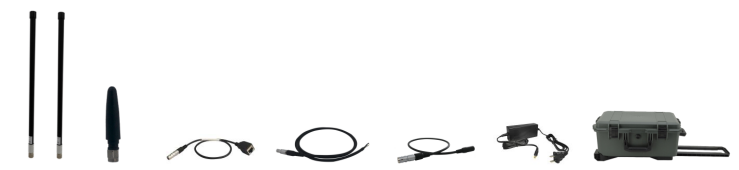

4. Accessories of Soft Defined Radios Private IP Mesh Network
1 X Unmanned System Radio Host X1
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Network port air plug
1 X Serial Port air plug
1 X Power cable

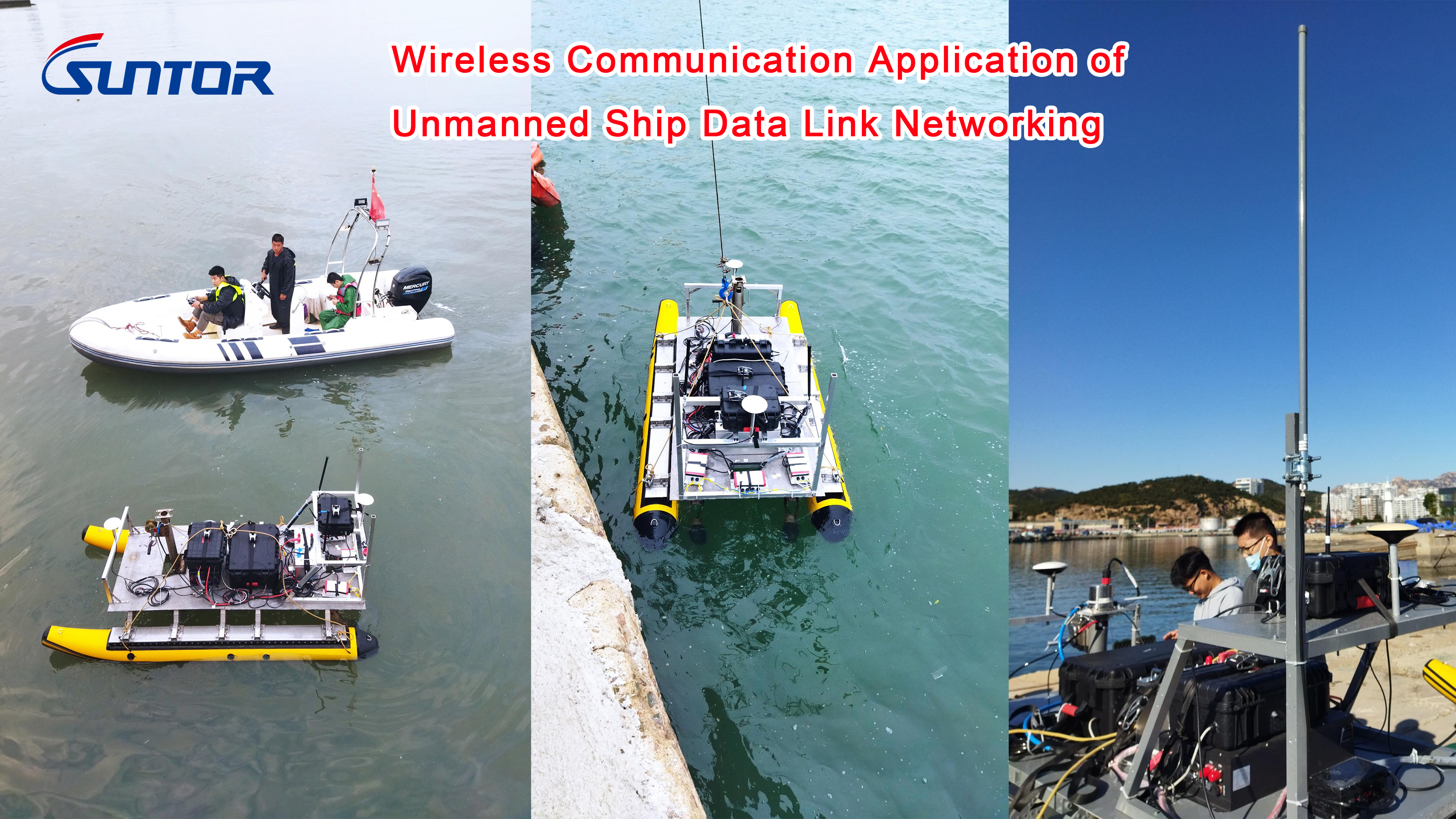

5. Application of Wireless Data Links for drones,UAV,UGV,USV
Suitable for UVA, unmanned vehicles, unmanned boats, robots, and other application scenarios with lightweight networking requirements,fast network access, automatic multi-hop relay, can quickly form an interconnected three-dimensional network with handheld individual soldier system, vehicle-mounted system and surrounding base station networking equipment to achieve efficient collaboration.
6. FAQ
Q1. Can I have a sample order for wireless data Links?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.
Customized one will based on the requirements and quantity.
Q3. Do you have any MOQ limit for Unmanned System Radio?
A3: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
