CD30NMT Drone Video Transmitter & Receiver Specifi...

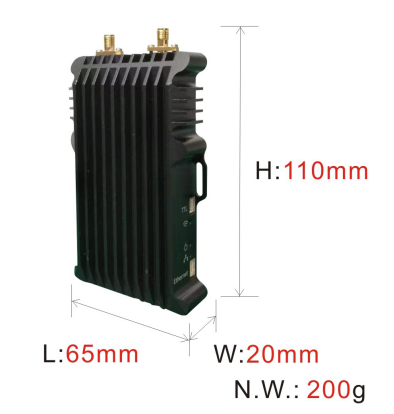

SUNTOR module CD30NMT is the latest miniaturized and functional wireless transmission equipment. It
adopts TDD wireless transmission technology and dual antenna diversity design to make the signal
transmission quality more stable. The device can support bidirectional transmission of network data and TTL
serial data at the same time. The data link can be adjusted according to different ratios, and the uplink and
downlink data link transmission rates can be adjusted proportionally. In addition, the module has three
frequency of 2.4GHz/1.4GHz/800MHz for option. The equipment can be applied to the use of intelligent
unmanned terminals such as UAV drones, unmanned ships, unmanned boats and robots.
Feature:
- TDD wireless transmission technology
- Optional frequency 800MHz,1.4GHz
- Duplex Transmitting Rate is 4-12Mbps
- Support Point to Point and Point to Multi-Point. 2-4 TX to 1RX, or 2-4 RX to 1TX.
- Dual antenna diversity design to make the signal transmission quality more stable, and high receiving
- sensitivity
- Long range more than 30km
- 2W RF power and lower power consumption
- Support IP video output and bidirectional TTL/RS232 serial data
- Adapt to global temperature -30℃～70℃
- AES128 Encryption
- The uplink and downlink data link transmission rates can be adjusted proportionally(2D3U,3D2U,4D1U)
- Optional Bandwidth(3MHz/5MHz/10MHz/20MHz)
Data Sheet:
Frequency:1.4GHz(1427.9-1447.9MHz) 800MHz(806-826 MHz)
Power:33dBm(2W)
Receivng Sensitivity:
2.4G ( 1Mbps ) :20MHz -99dBm 10MHz
-102dBm5MHz -104dBm
3MHz -106dBm1.4G
( 1Mbps ) : 10MHz -103dBm
5MHz -106dBm
3MHz -108dBm800M ( 1Mbps ) :10MHz -103dBm
5MHz -106dBm 3MHz -108dBm
Antenna:Double Antenna
Serial Port:TTL (Baud rate 115200)
Consumption:5V power supply the consumption maximum in 850mA±15%
Working
Temperature:-25℃~60℃
Frequency Hopping: Support automatic frequency hopping in the range of frequency.
Packaging: Transmitter x1, Receiver x1, Small Omni Antenna x4 Power Cable x2
