Economic Mini COFDM UAV Video Transmitter , Long Range High Definition Multimedia Interface Transmitter

Economic High Definition Multimedia Interface 720P 400mW 1-5km Mini COFDM UAV Video Transmitter

Specification Sheet

User Manual

Introduction

ST6200BM is a cost-effective COFDM wireless transmission equipment specially designed for UAV(unmanned aerial vehicle) applications. It supports HD 720P(1280*720). Using COFDM modulation technology, frequency bandwidth is 6MHz with a very strong anti-multipath interference ability. Compare with traditional analog and modulation technology, this model is more suitable for complex environment. It own diffraction and mobile function by using low frequency. It can transmit HD High Definition Multimedia Interface video in high speed movement. Mini size, weight 120g, transmit power 400mw, it is easy to carry and often used in short distance on ground and long distance transmission from air to ground. As special transmission: used for image collection including light UAV machine, super light UAV machine, spin wing UAV, mini UAV, unmanned boat, unmanned car, airship, drone aircraft, USV and all driving device. On ground LOS distance: 1-2km, air to ground 1-5km.

Features

• Light weight: 120g
• Small size: like a cigarette box
• Alarm function when video loss
• 4 channel to choose

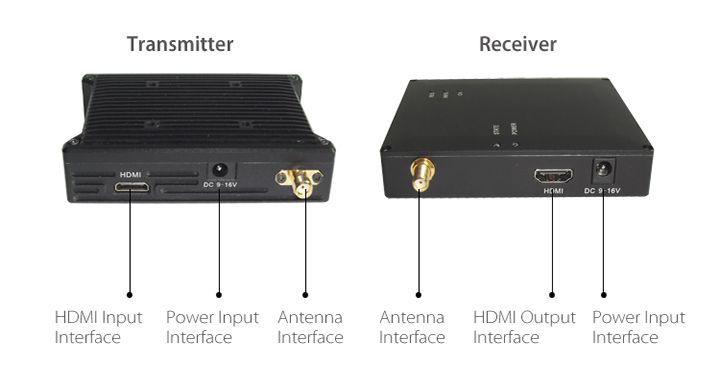

• HD High Definition Multimedia Interface Connector
• Resolution: HD720P(1280*720)
• Receiver has Signal Indicator
• Strong Cooling function
• Low power consumption
• H.264/MPEG-2 video CODEC
• Stable audio and video transmission in high speed moving and anti-multipath interference environment
• Strong NLOS transmission ability
• Transmission Power: 400mw

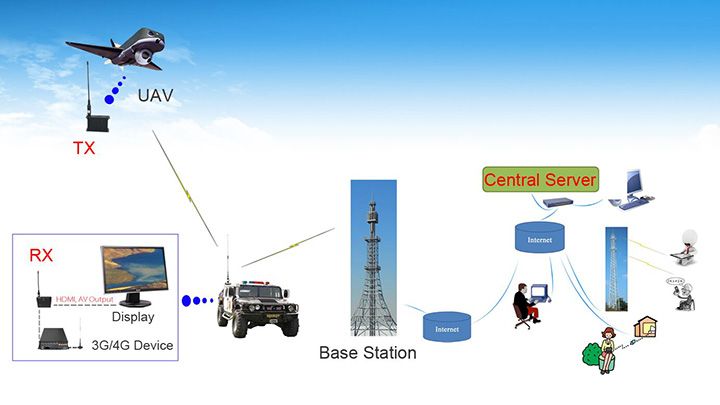

Solution

4. UAV Application effect of video
