Portable COFDM Receiver 4 Channels Clear Video Output With Two - Way Voice Transmission

  • 1
  • 2

Model Number : ST6000RSY-4

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Modulation : COFDM

Frequency Range : 170~860MHz

Video Decoding : MPEG-2/H.264/MPEG-R

Audio/ video Output : 4 channel

LCD Size : 15 inches

Power Supply : AC220V/DC12V <2A

Net Weight : 10 kg

Contact Now

Portable COFDM receiver 4 Channels clear Video Output with two-way voice transmission

ST6000RSY-4 is COFDM wireless vehicle-mounted monitor box. It can receive the wireless high resolution image and voice signal from ST6200 series transmitter. The transmitter and receiver make up a completed AV transmission system.

The item is applied to fast-moving situations without line-of-sight for it is very senstive to the signal.

It adopts the current leading COFDM modulation technology to make the transmission signal stable. Meanwhile, the image is clear, stable and real-time for the DVD standard MPEG-2 image compression and codec technology.

Features:

  • Two-way voice intercom, PC real time remote surveillance.
  • Integrated with 15-inch LCD high definition screen, local data receiving.
  • Support High Definition Multimedia Interface, multiple USB interfaced human-computer interaction
  • 1.5 hours battery run time, GPS customized.
  • Automatically adjusts to video formats
  • Dual mode MPEG2 and H.264 decoding
  • Support 4 channels standard definition video preview
  • Support record, playback, storage, build-in 500G hard disk. From the box screen, the controller can see 4CH video at the same time.
  • Support 128 bits AES encryption

Application

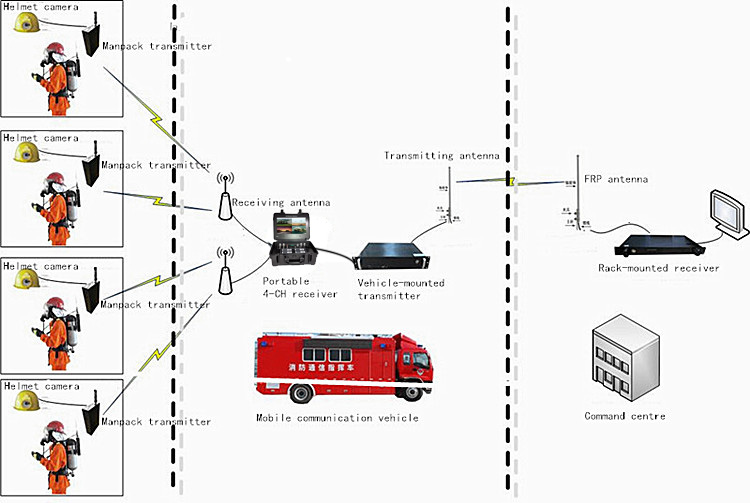

Work with the vehicle-mounted series COFDM mobile transmitter.

It is applied to the technical surveillance and forensics for and security inspection department.

Technical parameters ST6000RSY-4
Frequency range 170-860MHz VHF&UHF
Bandwidth 2/3/4/5/6/7/8MHZ
RFinput level -94dBm~0dBm(@8M)/-98dBm~0dBm(@2M)
RF Input impedance 50 Ohm
RF input connector N
Modulation COFDM
Modulation mapping QPSK,16QAM,64QAM(Optional)
Forward Error Correction 1/2,2/3,3/4,5/6,7/8(Optional)
Number of carriers 2k
Protection interval 1/32,1/16,1/8,1/4(Optional)
Video decoding MPEG-2MP@ML@ML/H.264/MPEG-R
Aspect Ratio 4:3 16:9
Image 720*576@8MHz
Audio output mode Stereo Unbalanced 300/ 200mv
Audio output 4 Audio output+4 Video output
Decryption mode 128 decryption, decryption need board support
Voltage AC220V/DC12V ＜2A
Working temperature -20℃～+50℃
Size 460*375*175mm
Weight 10kg
