Outdoor border patrol wireless video transceiver with rainproof function
Introduction:
This product is a new kind of broadband wireless video equipment that adopts the latest technologies of COFDM modulation and MPEG-2 video compression with IP66 waterproof that can complete video transmission in high-speed motion and NLOS (non line-of-sight) conditions. The diversity receiving technology greatly improves the receiving quality in all conditions. This transmitter is specially designed to meet all necessary transmission requirements of broadcasting standard.
ST6200DB-HDF is particularly well suited to providing robust wireless video links in mobile and non-line-of-sight urban environments, to a range of over 1 km. Built-in AES128/256-bit encryption ensures security – subject to export controls. Various frequency bands are available within 300 MHz to 4.4 GHz.
Features:
- Supports full HD quality image
- Supports 1080i/1080p HD transmission
- IP66 tri-proof standard grade
- Built-in with HDM or HD-SDI interface (single selection)
- Strong NLOS transmission 1~3km
- Supports composite standard video and balanced audio input
- Transmit power 1~5W adjustable
- All parameters can be adjusted by user
Application:
Applied to public security, fire protection, , civil defense emergency response, law enforcement, environmental monitoring, three emergency response, flood control, electricity emergency, rail rescue, maritime law enforcement, Coast Guard inspections, customs border, port monitoring, forest fire, oil field theft, such as reconnaissance, television; suitable for urban areas, sea, mountains and other high quality images in the complex environment of real-time mobile transmissions.
| Transmitter System |
| Frequency | 138Mhz~4400MHz Customizable |
| Output Power | 1~5W adjustable |
| Channel Bandwidth | 2/2.5/4/8 Mhz |
| Encryption Scheme | Manual AES double encryption |
| Transmit Distance | Air>70km, Marine>30km, City>5km, Suburb>7km, NLOS:1~3km |
| Power Supply | Special battery DC14.4V SO NY V style |
| Receiver System |
| Frequency | 138Mhz~2470MHz |
| Receiving Sensitivity | 2MHz@-103dBm/2.5MHz@-102dBm/4MHz@-100dBm/8MHz@-97dBm |
| Signal | LCD shows the signal strong |
| Receiving Polarization | vertical, dual antenna receiving |
| Received Technical | Space diversity receiving technical |
| Filter Technical | built-in high performance cavity filter technical |
| Power Supply | AC220V or DC12V |
| System |
| Modulation | COFDM |
| Working Temperature | -40℃～60℃ |
| Code stream | 1.5Mbps~6Mbps |
| Delay | 300ms |
| Error Rate | ≤10-6 |
| Usage mode | Individual weapon |
| Video and Audio |
| Compressed Format | H.264/MPEG-2 |

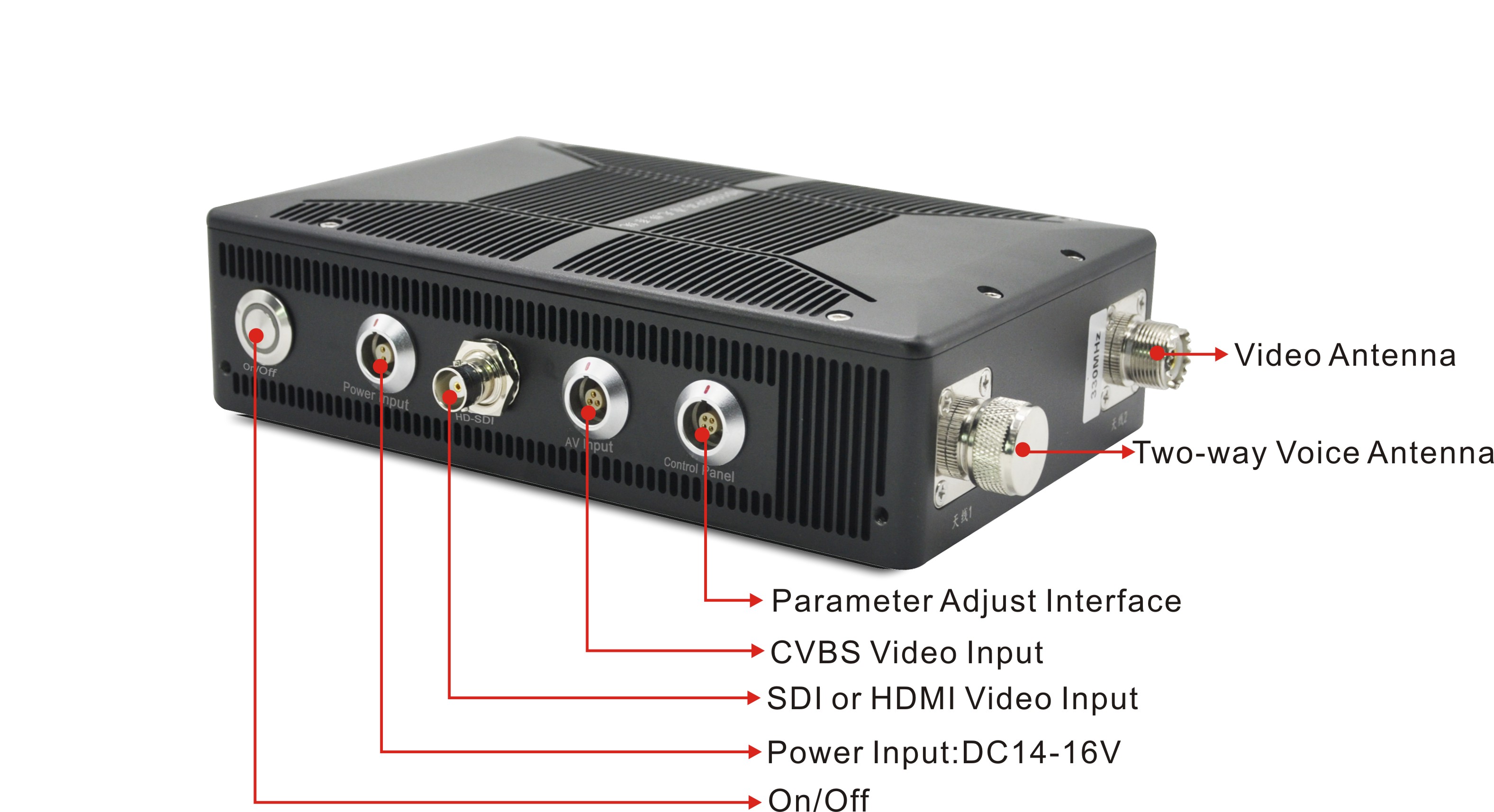

| Video Input | Digital HD-SDI, Analog CVBS audio video or Digital High Definition Multimedia Interface, Analog CVBS |
| Image Resolution | HD1080P(1920*1080), compatible 1080I, 720P, 480P and SD |
| Video/Audio input port | BNC, High Definition Multimedia Interface, Lotus |
| Image fps | Standard 24,50,60 fps |
| Packaging Details |
| Transmitter Size | 198*130*49 mm (L*W*H) |
| Receiver Size | 1U, 19 inch case, 480*280*45mm |
| Transmitter Weight | 1.5KG |
| Receiver Weight | 4.0KG |
