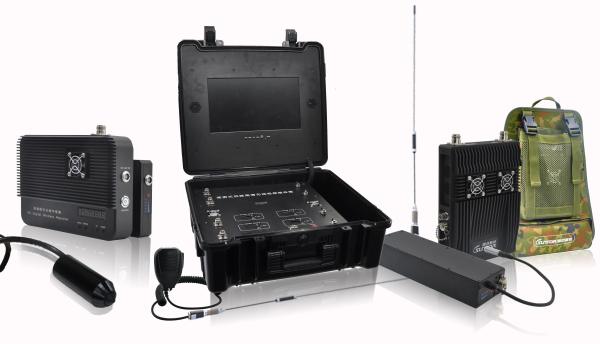

UHF Frequency Professional COFDM Video Transmitter Wireless For Defense

  • 1
  • 2

Model Number : ST6200TKMD-HD

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 7-15 days

modulation : COFDM

frequency : 300MHz～4400MHz

Output power : 1~5W adjustable

Range : 5-10km(LOS) / 50m-1km(NLOS)

Channel bandwidth : 2/2.5/4/8MHz

Usage mode : V-mount

HD Video Input : SDI or High Definition Multimedia Interface

Weight : 1.5 kg

Contact Now

300-900MHz low frequency professional wireless COFDM video transmitter for broadcast

Introduction:
The equipment can transmit images in a non-line of sight environment, over 0.5 mile depending on mode and frequency.

Designed to offer maximum flexibilitv in the limited or crowded spectrum in today's production environment, the Suntor COFDM transmitter has a variety of video input options including composite, SDI, HD-SDI and High Definition Multimedia Interface. which is particularly useful when accessing material in the field from pro-sumer and semiprofessional equipment.

Features:

  • COFDM modulation technology insure the stability of signal
  • HD-SDI/High Definition Multimedia Interface and BNC input
  • Narrow and wide band: 2/2.5/4/8MHz adjustable
  • HD video,embedded audio and composite video input
  • Balanced stereo audio input
  • Matched with dual V battery mounts
  • 1-5W rf power adjustable
  • Special for cameraman live broadcasting

Applications:
At the front-end personnel, scouts, firefighters, rescue personnel or television interview personnel using small size, backpack or buckle format transmitter transmit the live signals to the rear command vehicle Then command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command

Modulation

 Working frequency 300MHz～4.4GHz
Output power 1~5W adjustable
Range 500-1km(NLOS), 5-10km(LOS)
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth: 2/2.5/4/8MHz
Encryption mode AES 128Bit/SUNTOR Basic Scrambling
Code stream 2Mbps～12Mbps
Usage mode V-mount
Audio and video Compression format H.264(Embedded Audio)
AV input High Definition Multimedia Interface, SDI, CVBS(optional)
HD Format

1080p/23.98, 1080p/24, 1080p/25

1080p/29.97, 1080p/30, 1080P/60

1080i/50, 1080i/59.94, 1080i/60

720p/50, 720p/59.94, 720p/60

720p/25, 720p/29.97, 720p/30

720p/23.98, 720p/24

480P
SD Format

PAL 720 x 576

NTSC 720 x 480
HD Video Input SDI or High Definition Multimedia Interface
SD Video Input BNC
Audio Input Connectors SDI, High Definition Multimedia Interface or BNC
Others Antenna Connector SMA
Power supply

1. Buckle Lithium Battery DC14.4V

2. External Power In: DC 12~16.8V
Power switch ON/OFF
LCD display Display and Manually Adjust Parameters
Size 200×125×50 mm (L×W×H)
Weight 1.5kg
