Small Tiny Camera Data Video Transmitter And Receiver , 2.4 GHz Wifi Video Transmitter

Model Number : ST2410CO

Place of Origin : Shenzhen, China

Brand Name : SUNTOR

Certification : FCC, CE, RoHS

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Price : Negotiation

Packaging Details : Plastic Box

Delivery Time : 3-5 Days

Modulation : TDD-COFDM

Frequency Range : 2405-2470MHz

Transmission Mold : Full-Duplex/ Half-duplex

Output Power : 100mW-1W adjustable

Transmission Rate : 2Mbps～12Mbps

Power Supply : DC7-17V

Contact Now

Small size 2.4 GHz wireless rs485 tiny camera data video transmitter and receivers

Introduction:
ST2410CO TDD-COFDM transceiver adopts advanced time division processing, TDD bidirectional network transmission and the leading COFDM modulation technology combined, providing complete bi-directional encryption (supports AES_128 encryption) network data transmission channel, as well as anti multi path, high speed mobile data and voice.

H.264 code technology as the core, assigning channel resources through slot control, through the sub-carrier frequency flexibly assigned to multiple user terminals, within the same frequency maximized realized access multiple end users multiple access
Can realize real-time two way transparent information transmission under the condition of NLOS and high speed movement.

Multiple wireless networks can be integrated with each other layout into large network coverage

Details:

  • Data: RS232 RS422, RS485
  • Ethernet/IP/network: RJ45
  • Frequency: 2.4GHz
  • Distance: 1-10km
  • Modulation: COFDM/TDD-COFDM
  • Mode: TDD, full duplex, two way

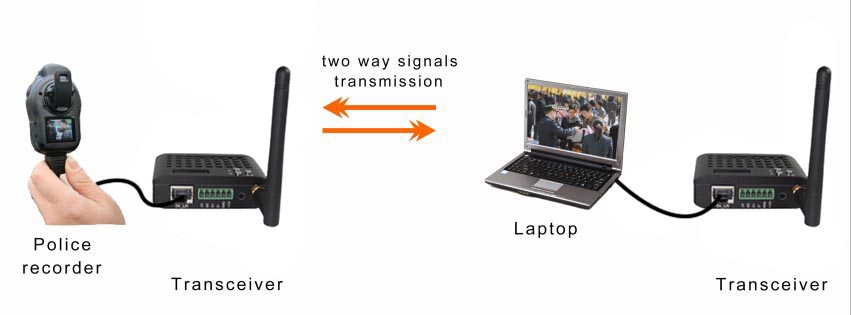

  • Transmission: audio, video, data, two-way, P2P (point-to-point), p2mp (point to multipoint), LOS (line of sight), NLOS (non line of sight), mobile

Technical performance:

  • Multi-frequency network base stations, single base station same frequency network, the same frequency network with bidirectional communication, high spectrum efficiency
  • Flexible allocation of channel resources to achieve PTP, PTMP and multipoint-to-multipoint two-way communication
  • Multiple channel bandwidth and a variety of modulation mode function
  • Flexible TDD slot allocation model to meet a single-frequency but multi-user access, not only save the spectrum but also to reduce power consumption
  • Spectrum sensing, perception slot, upstream bandwidth sensing function
  • Strong diffraction ability and anti-multi path capability
  • Can transmit video audio and etc signals synchronous, high speed.
  • Digital signal processing, a strong system of confidentiality, stability and reliability.

Modulation
Frequency Range 2405-2470MHz(Adjustable), Adjust wavelength 1Mhz on LCD
Frequency Channel TDD
Modulation COFDM
Bandwidth 4/8MHz adjustable on LCD
Output power 100mW-1W adjustable
Encryption AES 128-bit encryption, manually enter KEY code
System
Transmission mold Full-Duplex/ Half-duplex
Transmission Protocol standard TCP / IP , transparent transmission, serial asynchronous data
Data Type 10/100Bate-T Ethernet, industry RS-232, RS-422-RS485 standard
Analog audio Customized analog audio input connector
Transmission rate 2Mbps～12Mbps
Transmission delay 10～30ms
Networking mode Point to Point, Point to Multi Point
Error Rate ≤10-6
Transmission distance Horizontal on gound: 1-10km (LOS), Air to ground: 8-20km, Horizontal on sea 10-30km(LOS)
Receiving sensitivity -99dBm
Receiving mode Omni
Application Portable , aerial photography , aerial operation , short distance data transmission
Physical interface
Ethernet interface RJ45
RS-232/422/485 Six pin terminal blocks
Power Input Six pin terminal blocks
Audio input interface Standard 3.5 audio interface
RF interface SMA Female
Other
Power supply DC7-17V
LCD LCD to display and adjust the parameters
After 4.5 minutes to automatically turn off the LCD to save power
Equipment Color Black
Dimension 75*51*22mm (L×W×H)
Weight 120g
