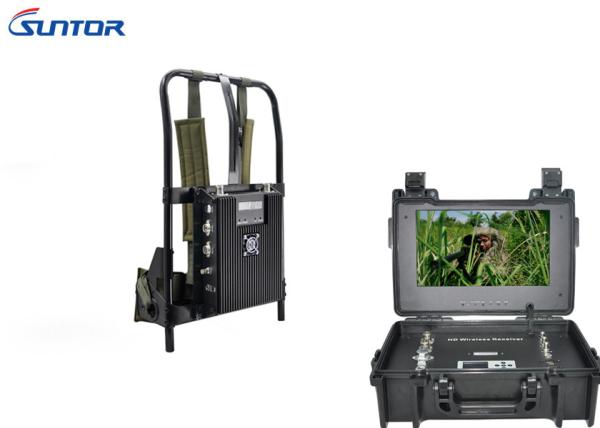

Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted

Name: Wireless Video Sender Digital Audio Video Transmission Channel AES256 Encrypted
Brand: SUNTOR
Price: 1 USD

Brand Name : SUNTOR

Model Number : ST9502T

Certification : FCC, CE, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Delivery Time : 7-15 days

Packaging Details : Plastic Box

Price : Negotiation

Power : DC 12V/3.5A

High Definition Multimedia Interface Output : High Definition Multimedia Interface-A-type

CVBS Output : CVBS Video Output

Environment : Ground to ground NLOS/LOS

IFFT : 2K/8K

Guard Interval : 1/4, 1/8, 1/16, 1/32

Bandwidth : 2/3/4/5/6/7/8 MHz

Weight : 1.6KG

Contact Now

Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted

Specification Sheet

Introduction

ST9502T use the core of 4th generation mobile communication COFDM multi carrier modulation technology and efficient innovation MPEG2/4/H.264 compressin coding method which make it can operate in a variety of transmission bandiwidths and frequencies allowing the user to trade off image quality against range.
These products support narrow band(1.25Mhz and 2.5Mhz) and full DVB-T compliante(6,7 or 8Mhz) channels.
The line has specifically been developed for worldwide customers in the law en-forcement and markets.

Features

High Definition Multimedia Interface and CVBS video interface, 1920P*1080P and PAL/NTSC high quality video
Strong safety with AES 256 bit encryption
Integrative design of back-pack, 10A battery, and robust transmitter
Compact design, low consumption and low latency
Support NLOS and fast moving environments but stable signals transmission
Easy operation by digital panel configuration, and LCD display
Designed in -grade level
Support transmitter function customized (including video interface, RF power, frequency, Battery volume, add data & two way audio function etc.)

Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted

Voltage	DC12V
Current	3.5A
Audio input	Stereo left & right channels
Video input	High Definition Multimedia Interface and CVBS
Bandwidth	2/4/6/8MHz
Frequency	300MHz-900MHz (subdivided)
Modulation	COFDM 2K
Constellation	QPSK, 16QAM, 64QAM
RF power	5W
Encryption	AES128
FEC	1/2, 2/3, 3/4, 7/8
Guard interval	1/32, 1/16, 1/8, 1/4
Video coding	H.264
Video resolution	1920*1080P
Parameter setting	User manually setting through LCD display panel
Antenna port	UHF
Operating Temperature	-25°C ~ 55°C
Storage Temperature	-40°C ~ 70°C
Dimension	27016565mm(transmitter only)
Weight	1.2kg(transmitter only)
