100Km application Drone Video Transmitter support SBUS / PPM Standard and GS / RC

Name: 100Km application Drone Video Transmitter support SBUS PPM Standard and GS RC
Brand: SUNTOR
Price: 1 USD

Brand Name : SUNTOR

Model Number : ST100HPT

Certification : FCC, CE, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Delivery Time : 7-15 days

Frequency : 2.4G-2.482Ghz

Video Input : SDI/High Definition Multimedia Interface

Data : Duplex data transmitting

Seria Baut Rate : 115200bps

Serial Port : Double

Ethernet : 100Mbps

Latency : 15-30ms

Working Temperature : -40°C ~ 85°C

Price : Negotiation

Packaging Details : Plastic Box

Contact Now

100Km application Drone Video Transmitter support SBUS / PPM Standard and GS / RC

Data Sheet

Description

ST100HPT Drone transmitter COFDM 120km microwave video sender is a new long range wireless aerial transmitter.

TDD-COFDM wireless transmitter is with latest technologies of COFDM, H.24+H.265+TS Stream image compression and full HD quality video.

Data and video wireless transmitter has good performance of wireless long range transmission, compact size, good heat resistance, and strong power amplifier for longer-range transmission
Long range wireless aerial transmitter can add High Definition Multimedia Interface or SDI interface as HD COFDM wireless video transmitter or add data port as COFDM data video transmitter to combine the RC links, Auto pilot system and video into one lin. Ethernet port on aerial transmitter and receiver support the video directly output to PC. So that the video can be stroe and retransfer online.

Drone transmitter COFDM 100-200km microwave video sender is encrypted with AES128/256bits, this machines performs well in fast-moving wireless transmission.

Features

Full HD 1920*1080P Video resolution
TDD-COFDM modulation
Stable signal
HD-SDI/High Definition Multimedia Interface input
Adjustable bandwidth 2/4/6/8MHz
Range 100 to 200km on UAV
Balanced stereo audio input
RF power 3Watts
Real-time broadcasting
Low delay 15-30ms
Built-in two cooling fans
Double Transmitting and receiving antenna to increase the sensitivity.

Paramters

Item name	Drone transmitter COFDM 100-200km microwave video sender
Model number	ST100HPT
Modulation	CODFM
DC input	7-18V DC
Working current	≤1A at 12V DC
Constellation	QPSK,16QAM (optional)
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (optional)
Carrier	2K
Guard interval	1/32, 1/16, 1/8, 1/4 (optional)
Frequency	138-4400MHz (available)/td>
RF power output	3Watts
Video interface	High Definition Multimedia Interface/SDI
RF interface	N type
Flatness	≤2dB (within full frequency range), ≤0.5dB (within 8MHz)
Video harmonic	1Vp-p at 75Ω, NTSC/PAL adaptive
CBER	<2.0E-4
Video compression	H.264+H.265+TS
Resolution	1920*1080
Casing protection	IP66 (dust-proof, rain-proof)
Work environment	-40~ +85degree centigrade
Dimensions	TX: 76x73x44mm/RX: 76x73x23mm
Weight	TX: 251g, RX: 146g
Delivery	1-3 working days delivery time
Free warranty	12 months for device; 3 months for parts

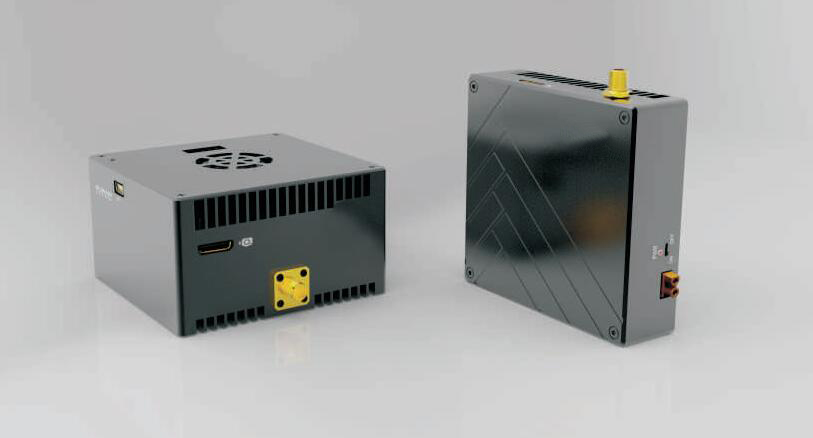

Pictures

100Km application Drone Video Transmitter support SBUS / PPM Standard and GS / RC
