Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

Name: Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W
Brand: SUNTOR
Price: 1 USD

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W Manufactures

Brand Name : SUNTOR

Model Number : ST9602MD

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union

Supply Ability : 5000set/month

Delivery Time : 1-2weeks

Packaging Details : Aircase packing

Frequency : UHF, C Band, L Band

Modulation : COFDM

RF : MIMO

WIFI : Yes

GPS : YES

Bandwidth : 5/10/20Mhz

Video Input : RJ45

Data : Full duplex RS232

Contact Now

Mobile-Networked MIMO Wireless Communication Systems

Data Sheet

User Manual

Introduction

ST9602MD is a broadband mesh radio which adopts self-developed COFDM modulation scheme, high efficiency channel codec and MESH networking protocol, offers strong NLOS performance with high throughput. It is an ideal solution to establish a self-forming, self-healing network between different points such as soldiers, vehicles and drones, this centerless network is capable of transporting heavy data in harsh environment.

Features
● Non-line-of- sight communication
● Self-organizing network
● Self-encrypting security algorithm
● Frequency at range of 300~1400MHz
● High transmission rate: peak 11Mbps @ 10MHz
● Ultra-strong receiving sensitivity: -92dbm @ 10MHz

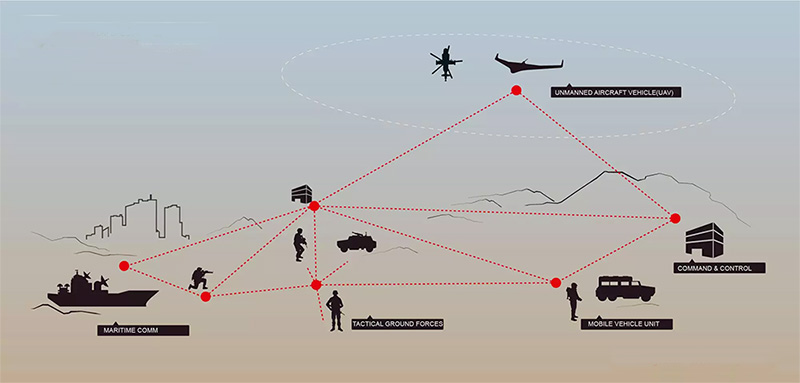

Application

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

Specification

Transmission characteristics		GPS	Optional External GPS module
Frequency	300MHz-1400MHz	3G/4G module	support
RF bandwidth	5/10/20MHz	WIFI module	support
RF output power	1~2Watt (optional)	Encryption 256	AES user-defined password
Shoulder ratio	30dBm>-45dbc	Electrical characteristics
Modulation	TDD	Working voltage	DC9-28V
Modulation constellation	BPSK/QPSK/16QAM/64QAM	Working current	≤2A
FEC	1/2,2/3,3/4,5/6	Power consumption	≤20W
sensitivity	-92dbm@20MHz	The built-in filter characteristics
Transfer rate	Peak 11Mbps@10MHz	Center frequency	340MHz/580MHz
Cover distance	customized	bandwidth	20MHz
Networking capability	up to 42 nodes	Out-of-band rejection	F0±10％≥44db
Data characteristics		F0±20％≥75db
Video input format	IP video input:1080P IP Camera	Far-end≥80db
Physical characteristics
Protection grade	IP66
Working temperature	-20℃～+70℃
Storage temperature	-30℃～+90℃
Dimension	220mm155mm52mm
Weight	1.4Kg

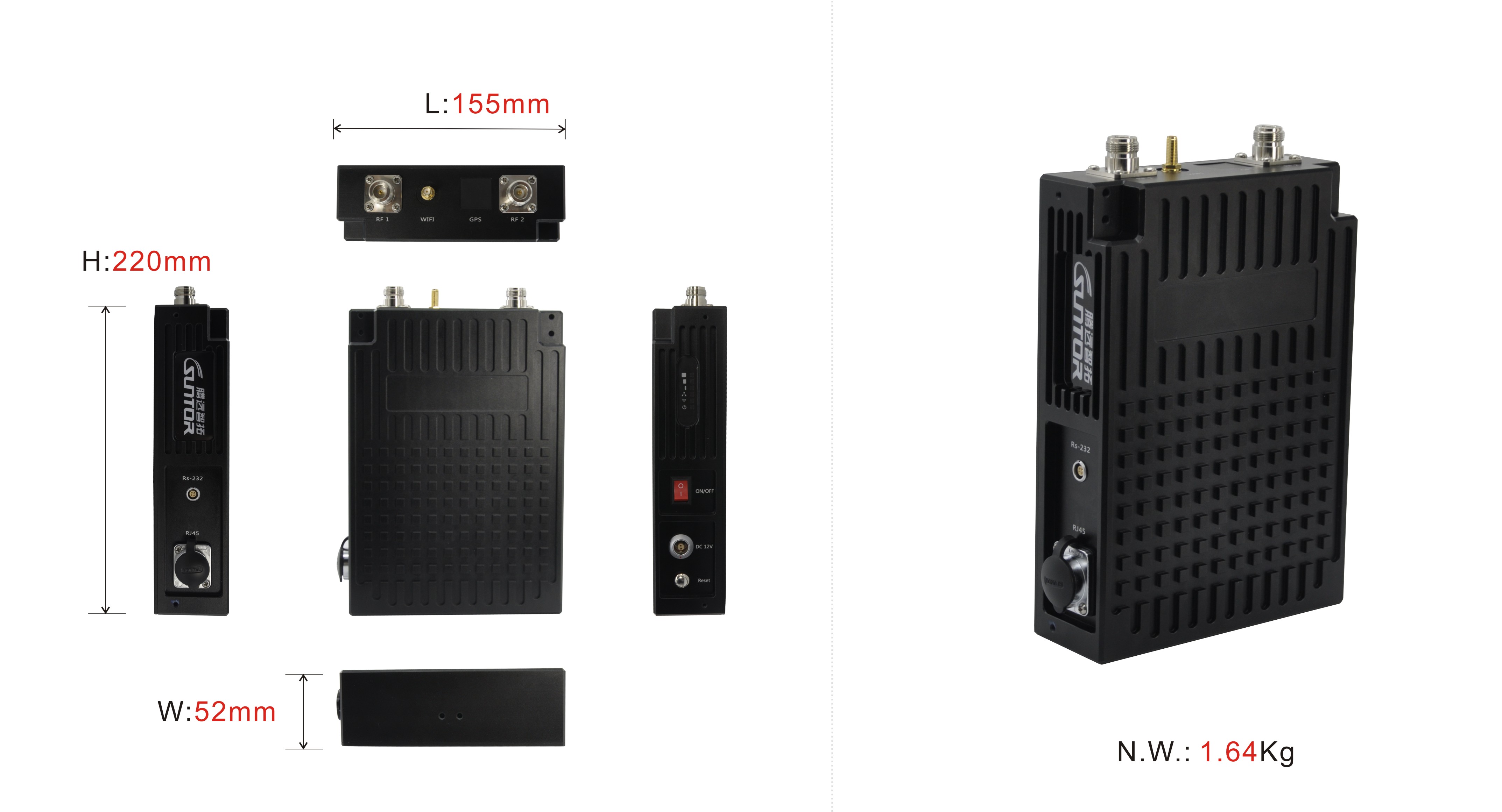

Dimension

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

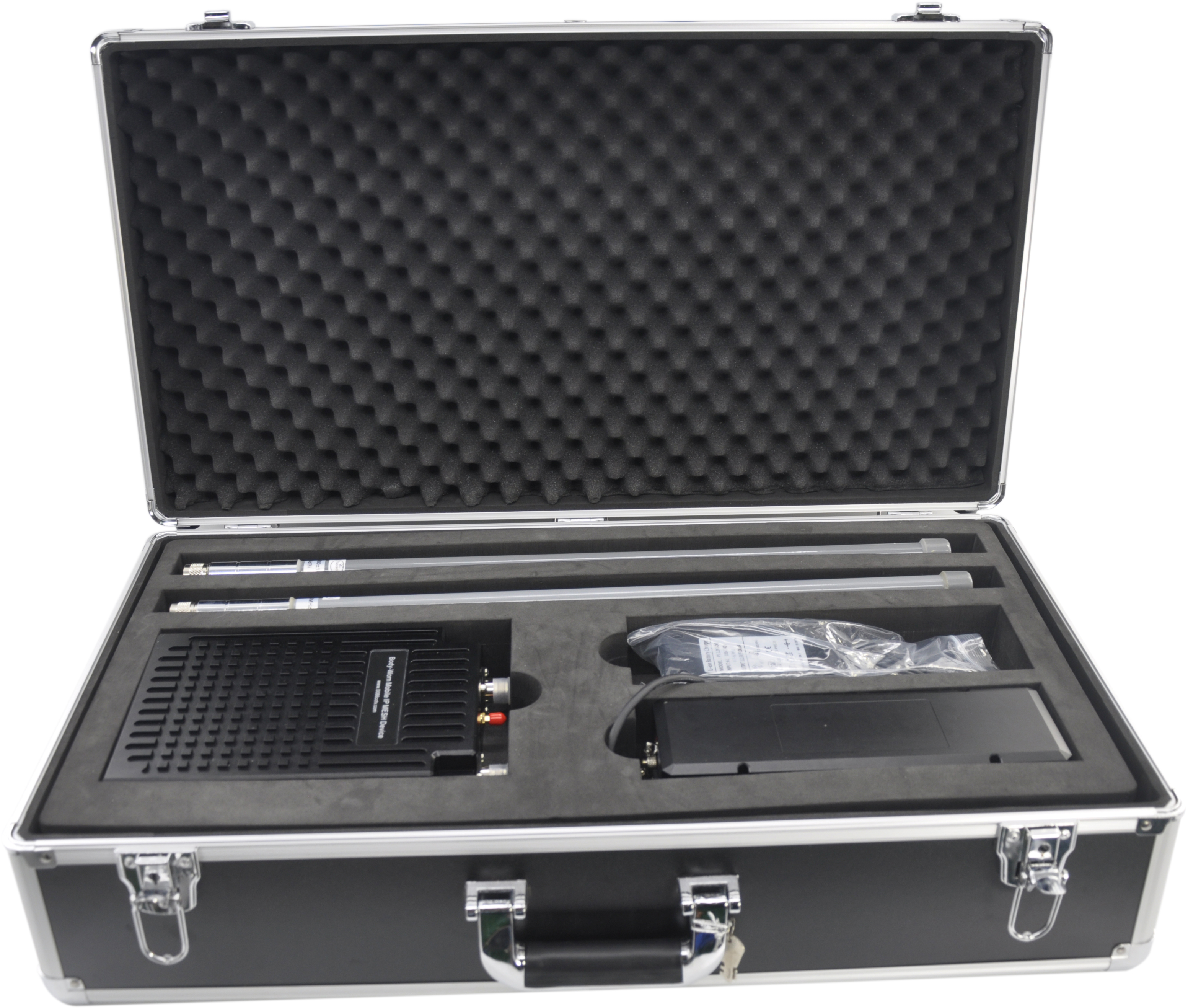

Package List

Accessories & Compatible Products

Additional Battery

Ethernet Interface Cable

Battery Charger

Antenna*2

ST9602MD

Package Box

Data Cable

Manpack Harness

Power Cable

wifi antenna

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W
